I'm thinking about the C$S kit myself, glad to hear it works for you.
M858 clutch kits?
- Thread starter hansenmac
- Start date
If I’da known about the c&s kit before ordering the Ibexx kit on Black Friday I might have tried them as they’re local, which would be beneficial for troubleshooting and whatnot. I just have a hard time trusting them though as they didn’t used to have a very good reputation as a shop here locally. They seem pretty popular these days though, so maybe things have changed over the years.
D
Deltasherpa
Well-known member

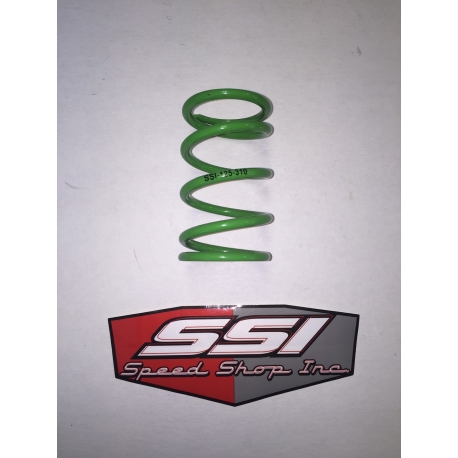

SSI CLUTCH KIT! $329.00 Best kit out there.
Since N. Utah was finally blessed with some deep pow I was able to put the Speedwerx kit through the ringer. Rode in 2 to 3' of fresh pow and the clutching performed flawlessly all day long. I set it up per their instructions and just rode it. The lazy bottom and mid is basically non existent, held 8-8100 all day long on long pulls and seemed to backshift just fine. Unrelated I only had one powder bog all day long but she was fully covered and I was on the exhaust side. I did spend some time sealing the gaps I could find in the lower intake. Sled is the 165 Sno Pro with Speedwerx clutching and Diamond S can
At 10000+ feet my m858 and my buddies m858 both only pull 7900 rpm on powder climbs. Replaced sp boots, adjusted exh cable, double checked clutches, tried another belt. Seems to shift fine- if I change to a higher rate primary spring what should I go with all other clutch components stock. Sled rips just need a bit more up top
Were the 10k+ clutch weights installed? Factory ships 6-8k elevation weights. Probably only need lighter weights.
58 weights in it now
Hmm. Country Cat lists the 10k+ as 60 gram. If you've got 58s in there you should have plenty of rpm.
My bad that link is for 8-10k. The 10k+ is 58 gram.
My bad that link is for 8-10k. The 10k+ is 58 gram.
I guess you could try a bit lighter finish rate on the primary spring but that could also lead to belt slip. Seems odd that 58 grams are only pulling 7900rpm. My dealer was hitting 8200-8300 on a breakin ride with 58s on three of their sleds. Something somewhere is off.
Random thought. I saw a post on Facebook about spark plug boots causing some issues and guys were swapping to some from POO. Wonder if something could be happening there causing your low rpm.
I changed boots already cuz it was down to 7400…. Real turd. Thinking a 46 helix could also help
Stock is 120/265, bdx blue spring 125/290 should work.
ARCTIC CAT / POLARIS PRIMARY CLUTCH SPRINGS
ARCTIC CAT / POLARIS PRIMARY CLUTCH SPRINGS
www.bd-xtreme.com
Mine was doing the same thing dragging down to 7400. I rode 11,000ft last week with 58s, 46 helix. Once the SP/boot issue was figured out I would peak at 8100 and hold 7900 in deep pow/climbs. I had a lighter secondary spring in it though, so putting stock back in and will try that out again. I had the stock spring in the ride before but swapped it out thinking I was chasing clutching, when it was really a spark issue. Went with the Cat boots from the ascender, and put in different plug wires as well.
My stock 600 catalyst would out climb it in deep powder. (600 is 153 2.6 858 is 165 3") My sons 2022 alpha would outrun me 20 sled lengths in a long steep powder climb. I couldn't get over the hill and he would fly over it with ease. Felt good going up the trail but seat of the pants can be very misleading.
Comparing mine (Speedwerx) vs my friends stock 154, he is able to climb a length or two higher and seems to lift the front end much easier when on and off the throttle. There is a 80 lb weight difference between the two of us. He also thinks that the mid range is much better but on the top end the sleds feel similar.
