This is kind of what I am talking about.
Sent from my iPhone using Tapatalk

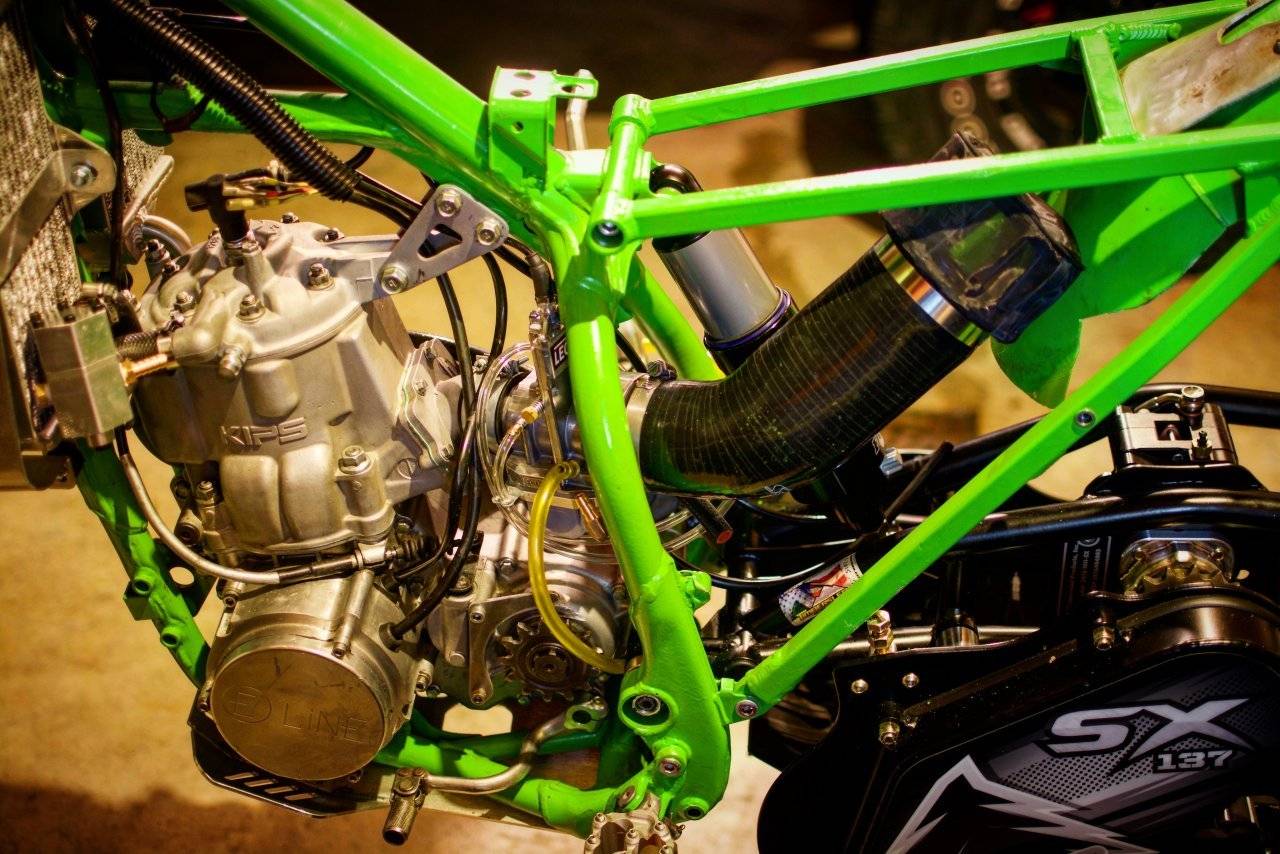

2003 KX500 137SX Timbersled Build
- Thread starter hwwee
- Start date
This is kind of what I am talking about.
Sent from my iPhone using Tapatalk
Thanks!
This is kind of what I am talking about.
Yep!! After talking with my buddies this morning and looking at everything shes going to have to be flipped! You are correct!
Moving Foward

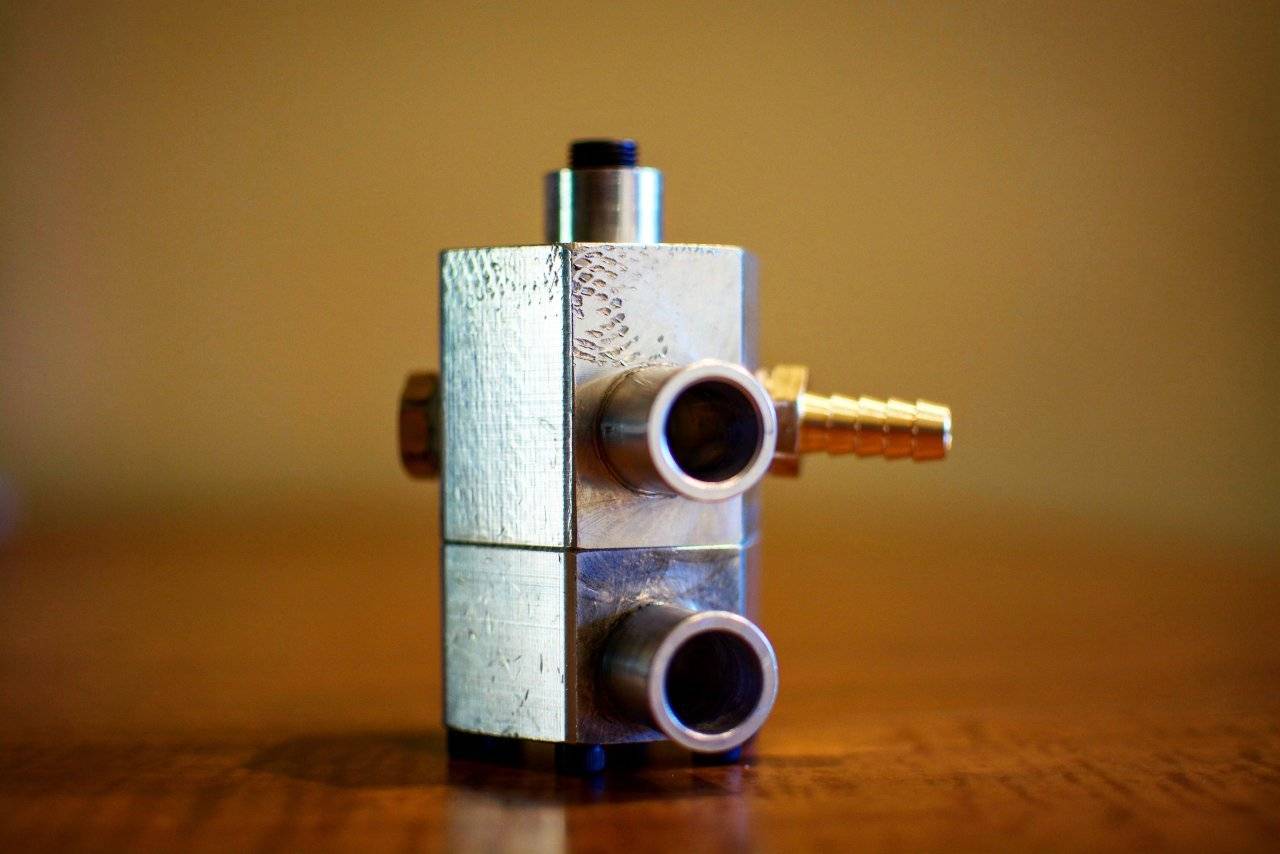

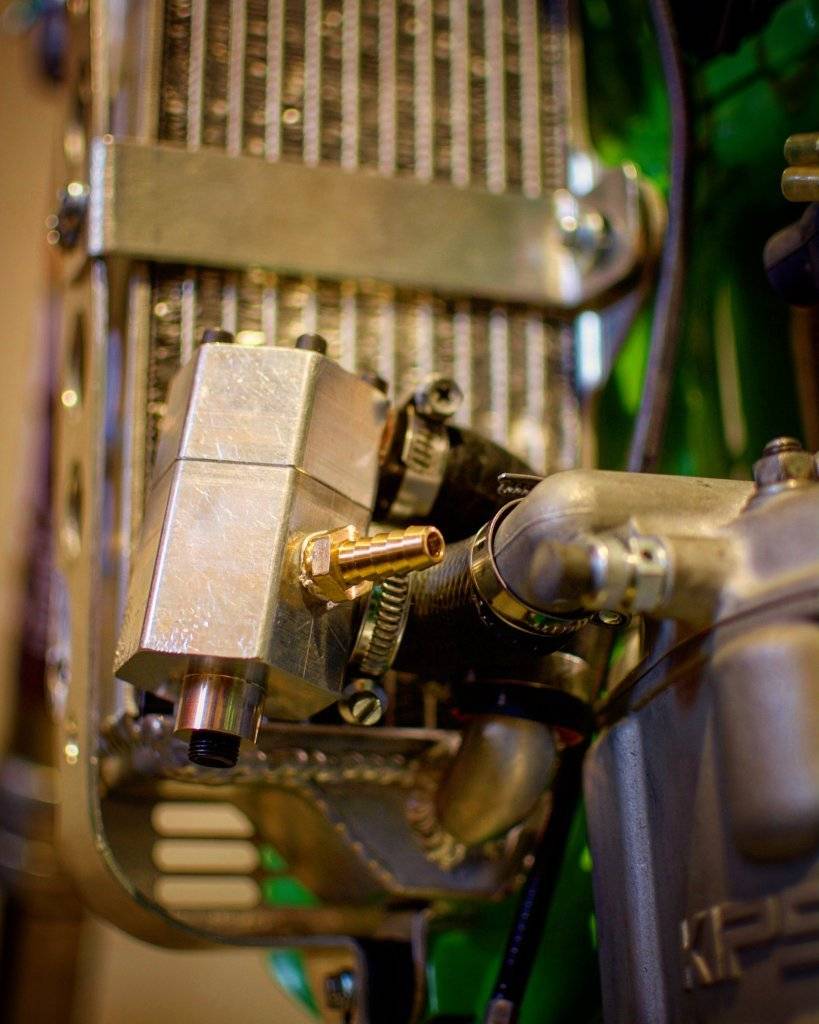

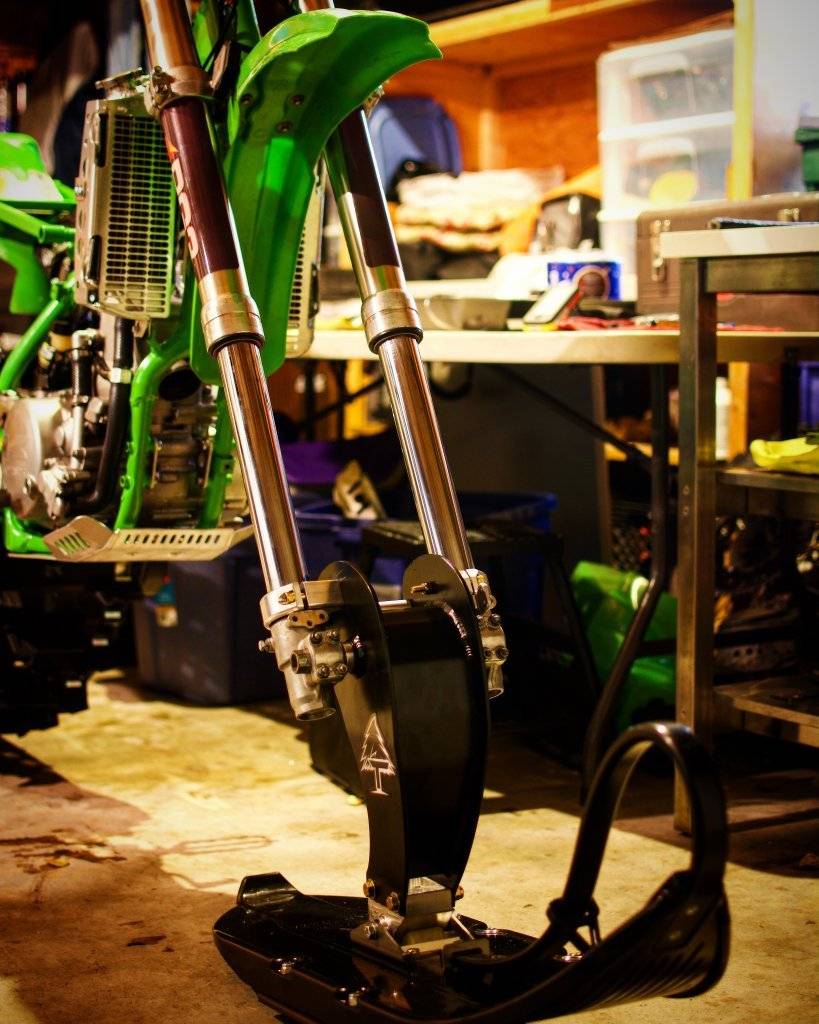

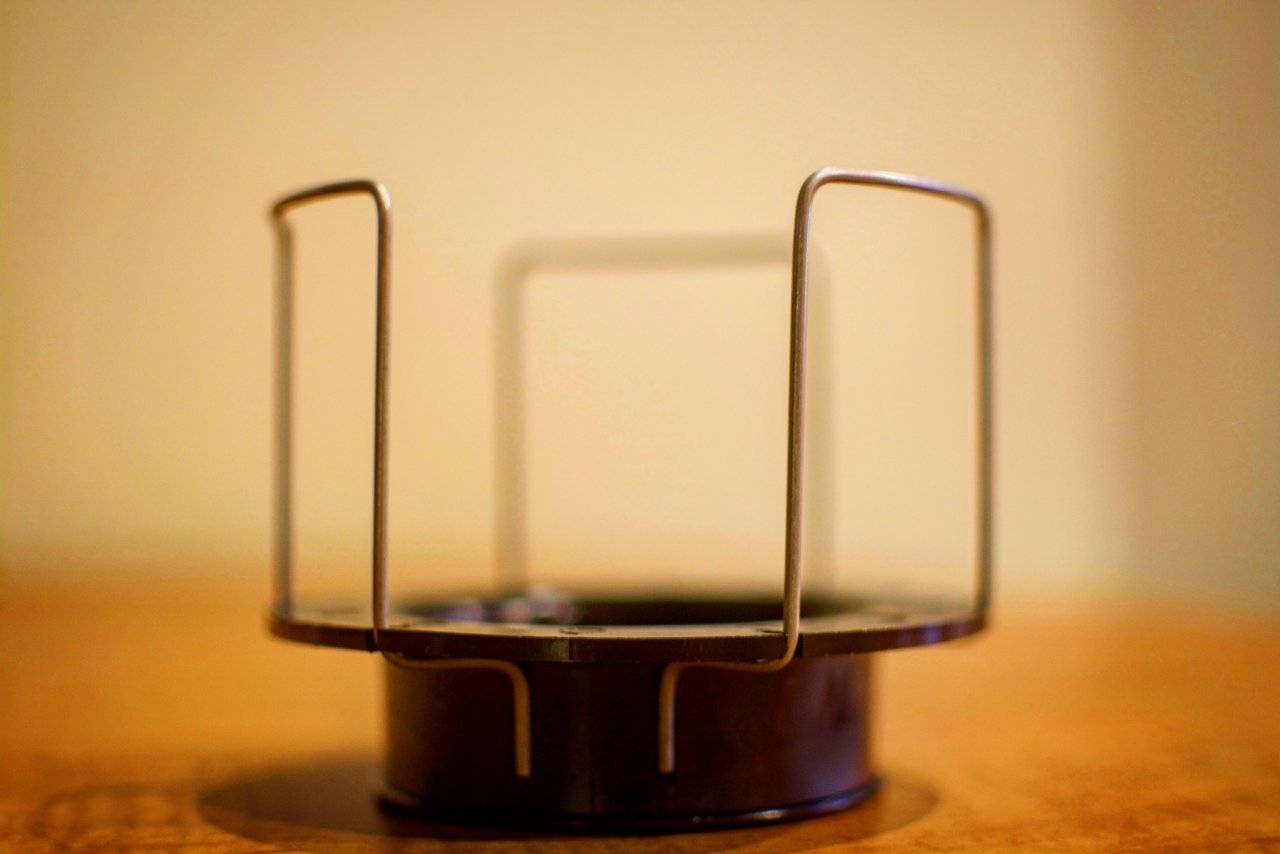

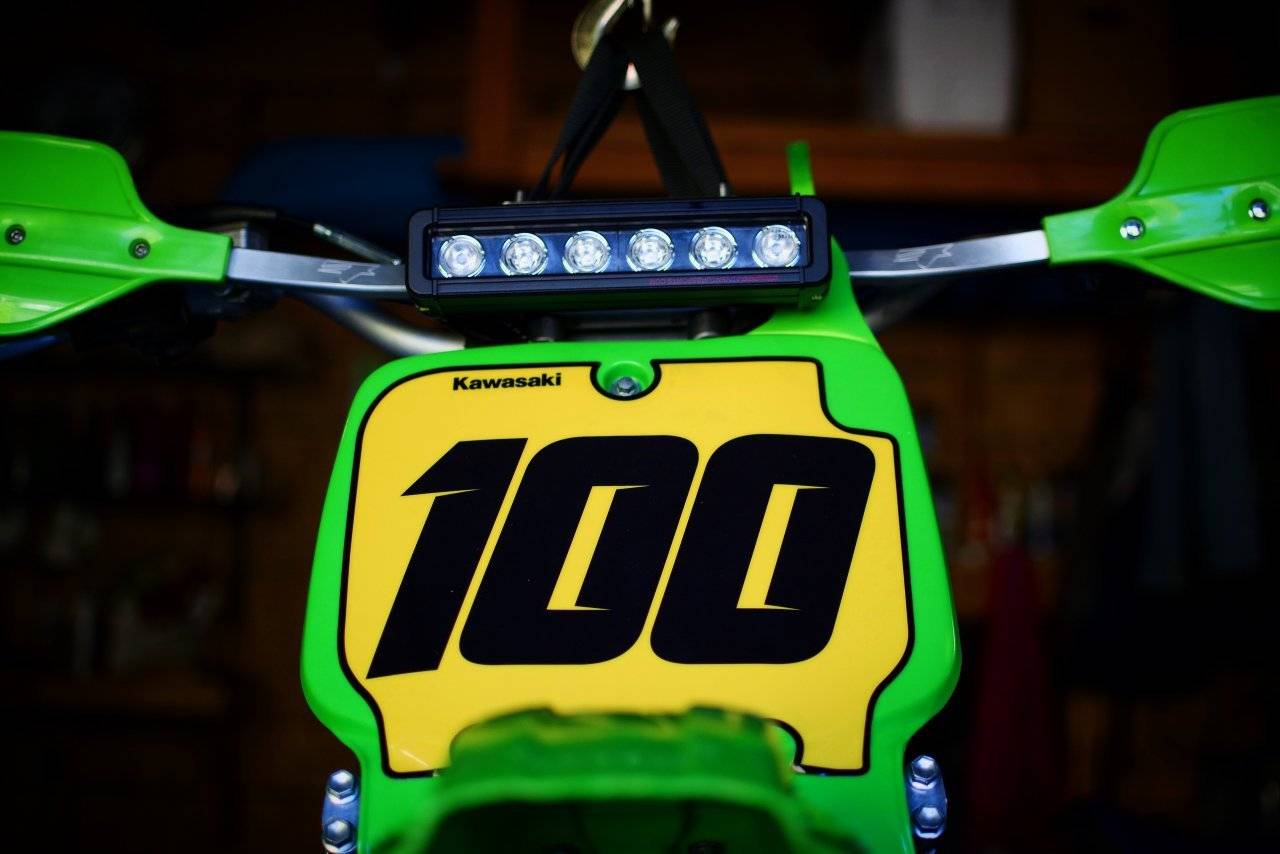

Today I worked on fixing my thermostat problem. When I flipped the thermostat over to the correct direction the brass nipple was to cramped against the radiator. There is not much room in this stock head design to put many accessories. I have a water temp gauge that I planned on adding but as for now have yet to find a solid place to put it. Anyhow, instead of calling Avid (which I'm sure they could have helped me as they have already replaced my Carb Heater to a better fit (THANKS GUYS!) I decided to attack this project with friends. All we needed to do was plug the current fitting and make a new fitting for the opposite side. Here's what we came up with! I also finished my handguard mount as well as flipped the Cyclops headlight under the new bracket. Ski is mounted and snow is falling! Next I will tackle mounting this thermostat as well as fusing my carb heater onto the Lectron and finishing the air intake setup.
Today I worked on fixing my thermostat problem. When I flipped the thermostat over to the correct direction the brass nipple was to cramped against the radiator. There is not much room in this stock head design to put many accessories. I have a water temp gauge that I planned on adding but as for now have yet to find a solid place to put it. Anyhow, instead of calling Avid (which I'm sure they could have helped me as they have already replaced my Carb Heater to a better fit (THANKS GUYS!) I decided to attack this project with friends. All we needed to do was plug the current fitting and make a new fitting for the opposite side. Here's what we came up with! I also finished my handguard mount as well as flipped the Cyclops headlight under the new bracket. Ski is mounted and snow is falling! Next I will tackle mounting this thermostat as well as fusing my carb heater onto the Lectron and finishing the air intake setup.
Progress

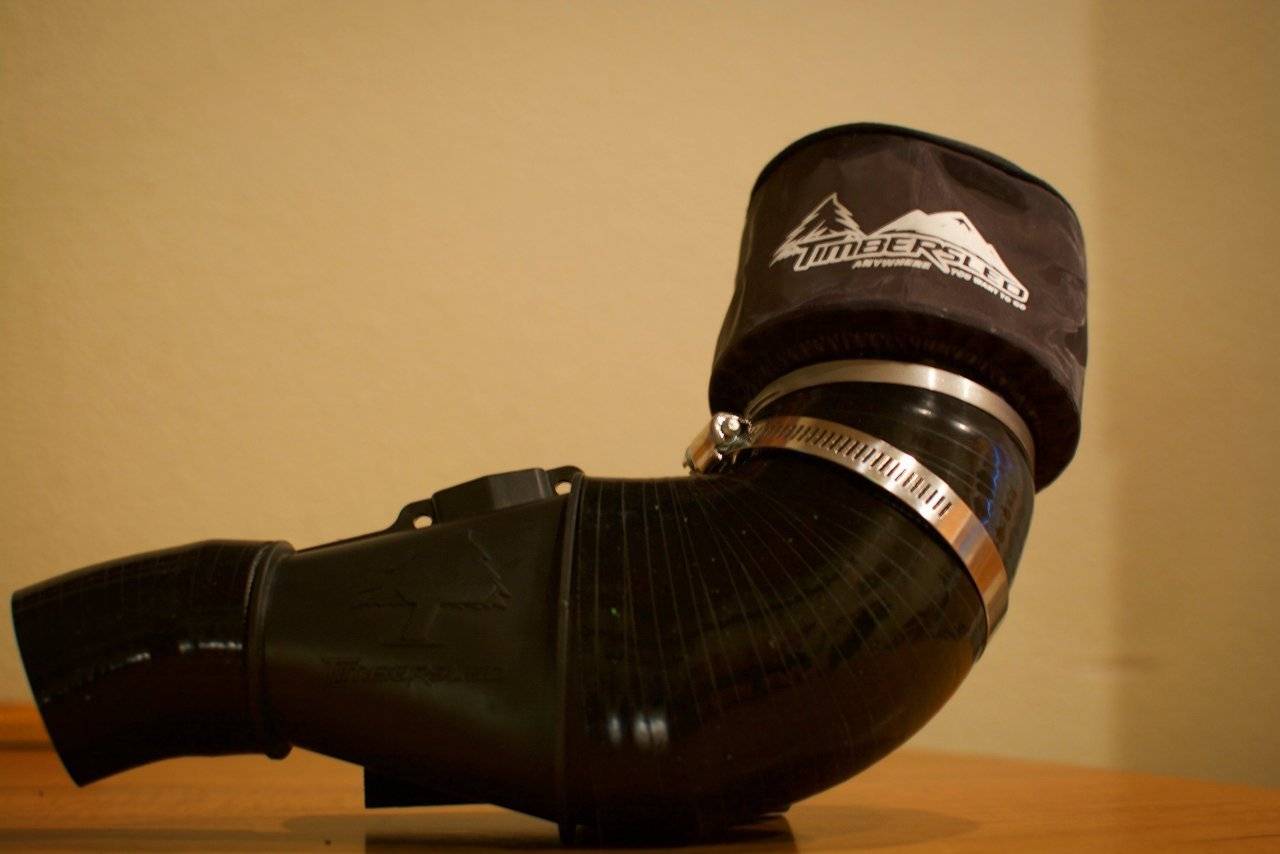

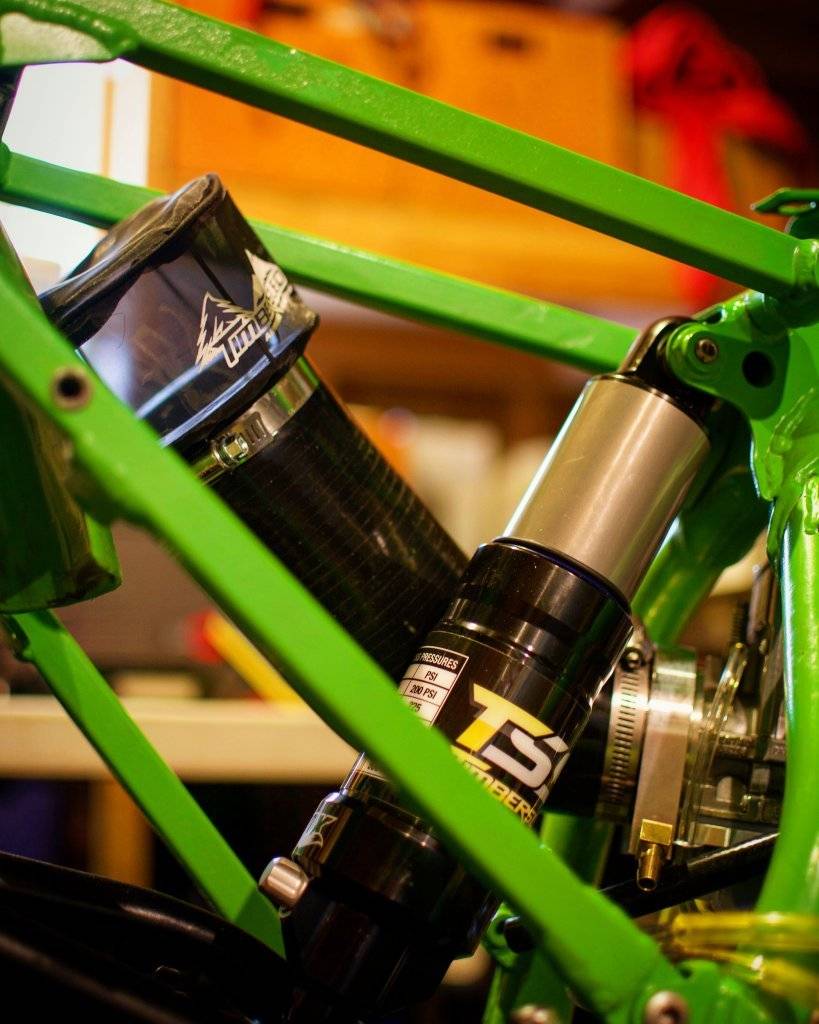

Today was intake day. The stock intake setup that comes with the TSS timbersled kit is a generic kit that requires modification. Most of the parts like the air intake sensor piece I just don't need. The kit has 2in silicone plumbing (carb side) to 3" Timbersled Filter side. Provided plumbing is the 2" to 2" and 3" - 3" with the connector for the sensor. The carb heater outlet was 2.5" so I ordered up some more HPS goodness (45 degree Elbow Reducer Coupler Hose 4" Leg Length on each side, 2-1/2" > 3" ID) cut it down and here is my first attempt so additional modifications will be required
I am still working on a bracket to hold my thermostat but this seems to be a solid location. I am just working on getting the piping right

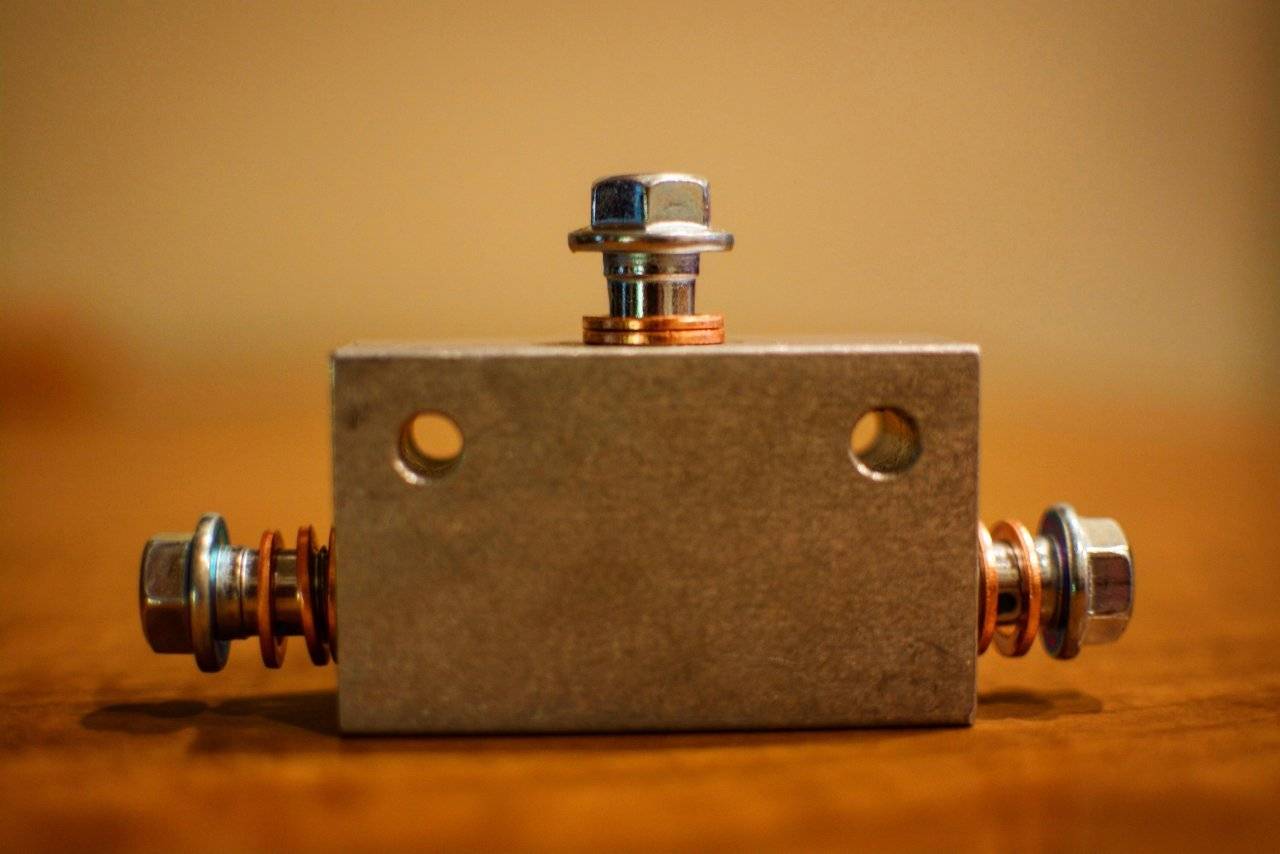

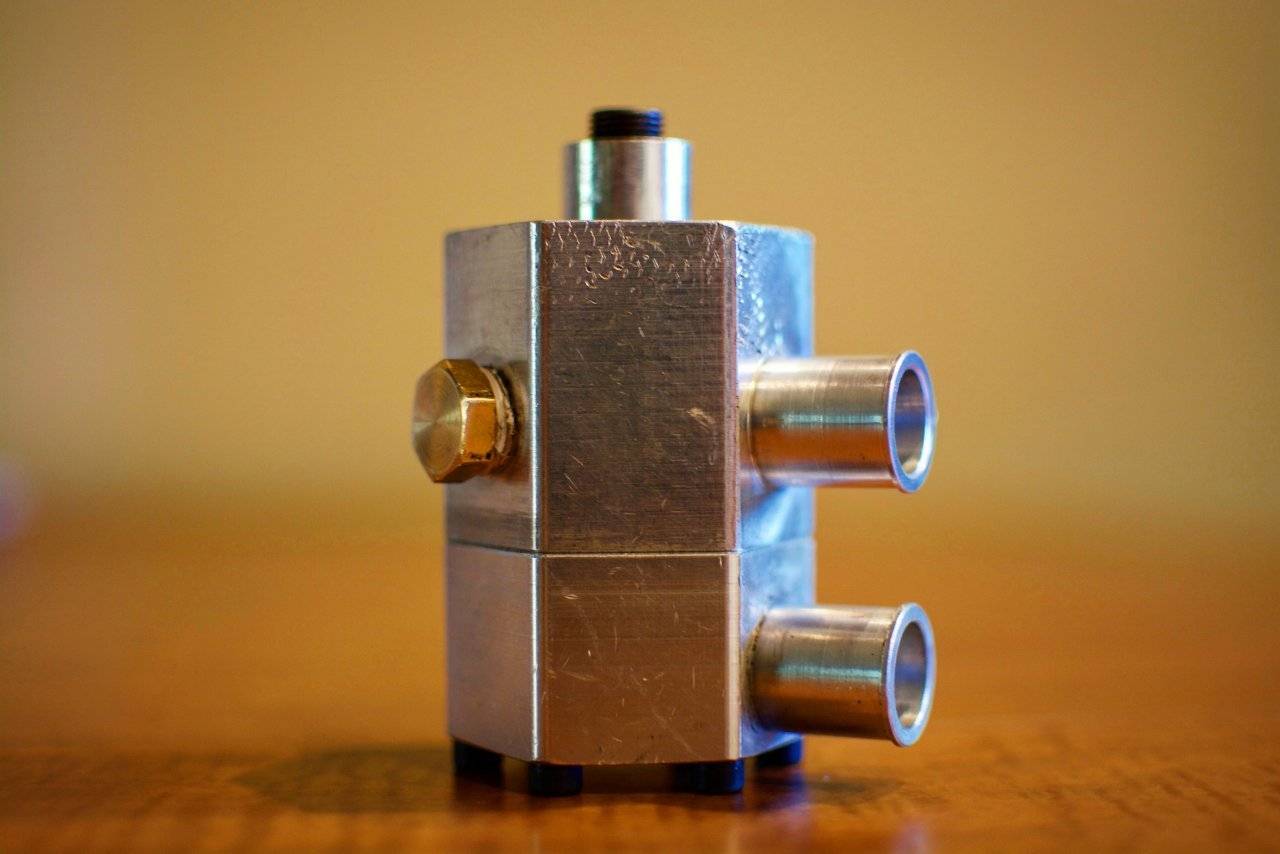

Next is the brake system. I wanted to be able to have the use of both my front and rear brake lever. So I dropped an email over to Larry at (9milemachine@usa.com)and he hooked me up with this nice little piece that allows me to utilize both. Installing soon.
I have been waiting for Timbersled to ship both my Ramp (ALL SPORT RAMP PRO) and Fuel Can and strap. All three of which seem to be on a backorder that no one told me about. It's been about 2 months now and no word from the dealership,timbersled, or polaris haha I called them all! I hate to bitch about stuff but I don't like paying for a product that I don't have! Needless to say I am a bit frustrated and I believe for my next build I will go with another company! There seems to be a lot of great companies coming out with innovate products that will be nice for future builds! Timbersled has lost me as a customer. For now the tunnel goodies will have to wait to be installed.
I digress the build is still going well and snow is in the forecast. I look forward to putting this machine through its paces!
Today was intake day. The stock intake setup that comes with the TSS timbersled kit is a generic kit that requires modification. Most of the parts like the air intake sensor piece I just don't need. The kit has 2in silicone plumbing (carb side) to 3" Timbersled Filter side. Provided plumbing is the 2" to 2" and 3" - 3" with the connector for the sensor. The carb heater outlet was 2.5" so I ordered up some more HPS goodness (45 degree Elbow Reducer Coupler Hose 4" Leg Length on each side, 2-1/2" > 3" ID) cut it down and here is my first attempt so additional modifications will be required
I am still working on a bracket to hold my thermostat but this seems to be a solid location. I am just working on getting the piping right
Next is the brake system. I wanted to be able to have the use of both my front and rear brake lever. So I dropped an email over to Larry at (9milemachine@usa.com)and he hooked me up with this nice little piece that allows me to utilize both. Installing soon.
I have been waiting for Timbersled to ship both my Ramp (ALL SPORT RAMP PRO) and Fuel Can and strap. All three of which seem to be on a backorder that no one told me about. It's been about 2 months now and no word from the dealership,timbersled, or polaris haha I called them all! I hate to bitch about stuff but I don't like paying for a product that I don't have! Needless to say I am a bit frustrated and I believe for my next build I will go with another company! There seems to be a lot of great companies coming out with innovate products that will be nice for future builds! Timbersled has lost me as a customer. For now the tunnel goodies will have to wait to be installed.
I digress the build is still going well and snow is in the forecast. I look forward to putting this machine through its paces!
I could use some help!
Good Evening Guys! I could use some help...
I am working on Gearing right now for this bike and just getting into the 2016 chain tensioner SX with TSS problem. I did not realize this was an issue until I went to put the chain on provided with the kit.
My kit came with the JT 520 X1R2 which I have herd had some breaking and rubbing issues on the frame. I am searching for the answer to the tensioner problem (I know it's out there somewhere) and what folks suggest for a chain instead of the JT... Does the 2017 XK chain solve this issue?
Next questions refer to the gearing. The bike came with 13 tooth primary front sprocket and the SX kit came with a 16 tooth sprocket. I have yet to read anyone running that combination and just wondering what my best move forward is for the whole setup. Not much trail ridding here mostly in the hills!
Thanks for any help yall can provide. This timbersled is a disaster I wish I had bought anything but this product!!
Good Evening Guys! I could use some help...
I am working on Gearing right now for this bike and just getting into the 2016 chain tensioner SX with TSS problem. I did not realize this was an issue until I went to put the chain on provided with the kit.
My kit came with the JT 520 X1R2 which I have herd had some breaking and rubbing issues on the frame. I am searching for the answer to the tensioner problem (I know it's out there somewhere) and what folks suggest for a chain instead of the JT... Does the 2017 XK chain solve this issue?
Next questions refer to the gearing. The bike came with 13 tooth primary front sprocket and the SX kit came with a 16 tooth sprocket. I have yet to read anyone running that combination and just wondering what my best move forward is for the whole setup. Not much trail ridding here mostly in the hills!
Thanks for any help yall can provide. This timbersled is a disaster I wish I had bought anything but this product!!
On my kx500 I have 14T countershaft. -- in my chain case I had 18/16 . Worked well with the LT
Chain tensioner problem can be resolved with a clutch spring or just small spring from hardware store. Put it between the tensioner bolt and the chain adjuster. This worked great for me.
Sent from my iPhone using Tapatalk
Thanks!
Chain tensioner problem can be resolved with a clutch spring or just small spring from hardware store. Put it between the tensioner bolt and the chain adjuster. This worked great for me.
Thanks for the reply! Hate to ask this of you but have you seen a picture of this setup floating around? Ive tried to contact Timbersled about it and have received no reply yet!
Edit- Just found it here thanks!
Last edited:
thanks for the great post.
Thanks fot the great detailed pictures and post. lots of good specific info and it looks great.
Thanks fot the great detailed pictures and post. lots of good specific info and it looks great.
Thanks! Always some ups and downs in a build but she's coming together! Currently, I am at about 90% built I just have some odds and ends to finish up but all in all it's been a fun ride already!
Here is a video of me firing her up!
https://youtu.be/v4rLDjKqmTQ
Last edited:
Nice build. Thing looks nice
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
I noticed you are not running the carb jacket. Are you planning on it?
Sent from my iPhone using Tapatalk
M
Mr. Gimmie
New member
Looks like fun. I too am having issues with pulling the trigger on Avid's carb heater due to clearance issues on my CR500. Thanks for mentioning they can/will make another design. I'll call them in the morning!
Here is how mine fit on the cr... I had to replumb the inlet and outlet.
https://www.dropbox.com/sh/scp3uv55ain8myu/AADC0UBv5ZSLq-iwAZrW7yJVa?dl=0
Sent from my Pixel XL using Tapatalk
https://www.dropbox.com/sh/scp3uv55ain8myu/AADC0UBv5ZSLq-iwAZrW7yJVa?dl=0
Sent from my Pixel XL using Tapatalk
We all make mistakes!
I have been pretty quiet for a while due to me making a mistake. We all make them right! This is my first build and I knew it was bound to happen. We have been having one hell of a snow year here in Jackson and luckily I have been able to ride all the 2017 sleds this year while I saved my pennies to fix my KX!

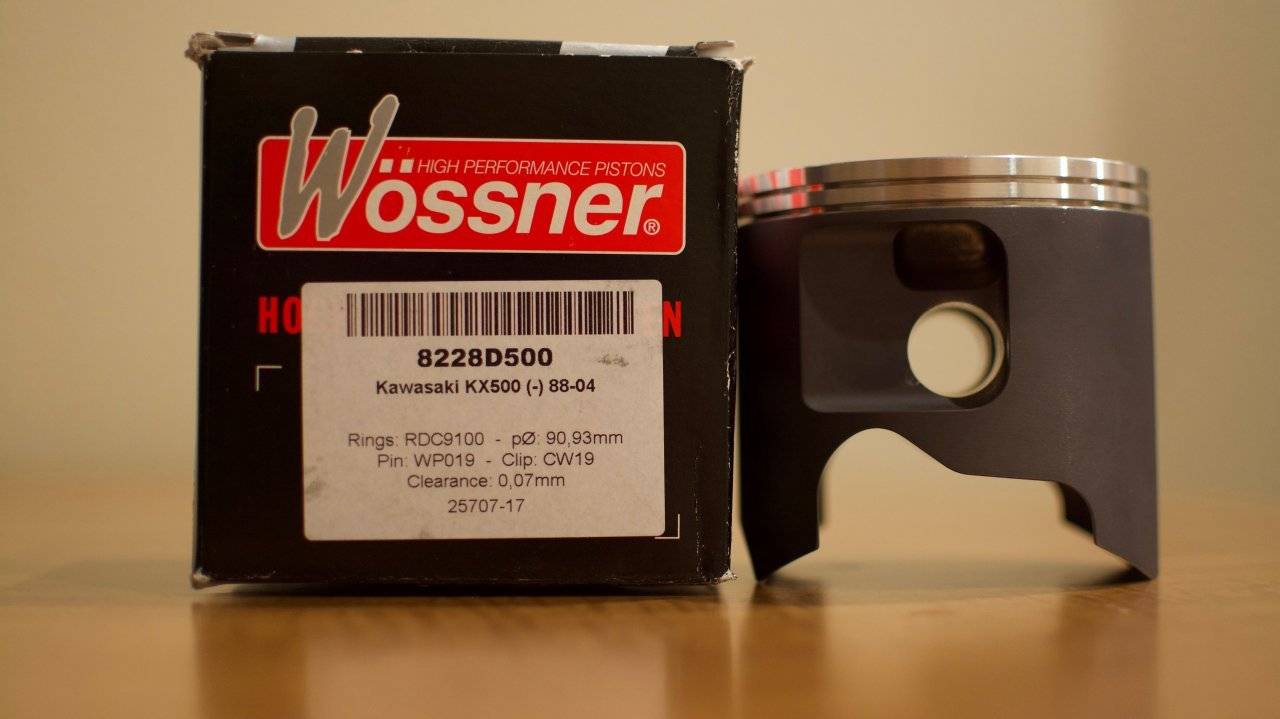

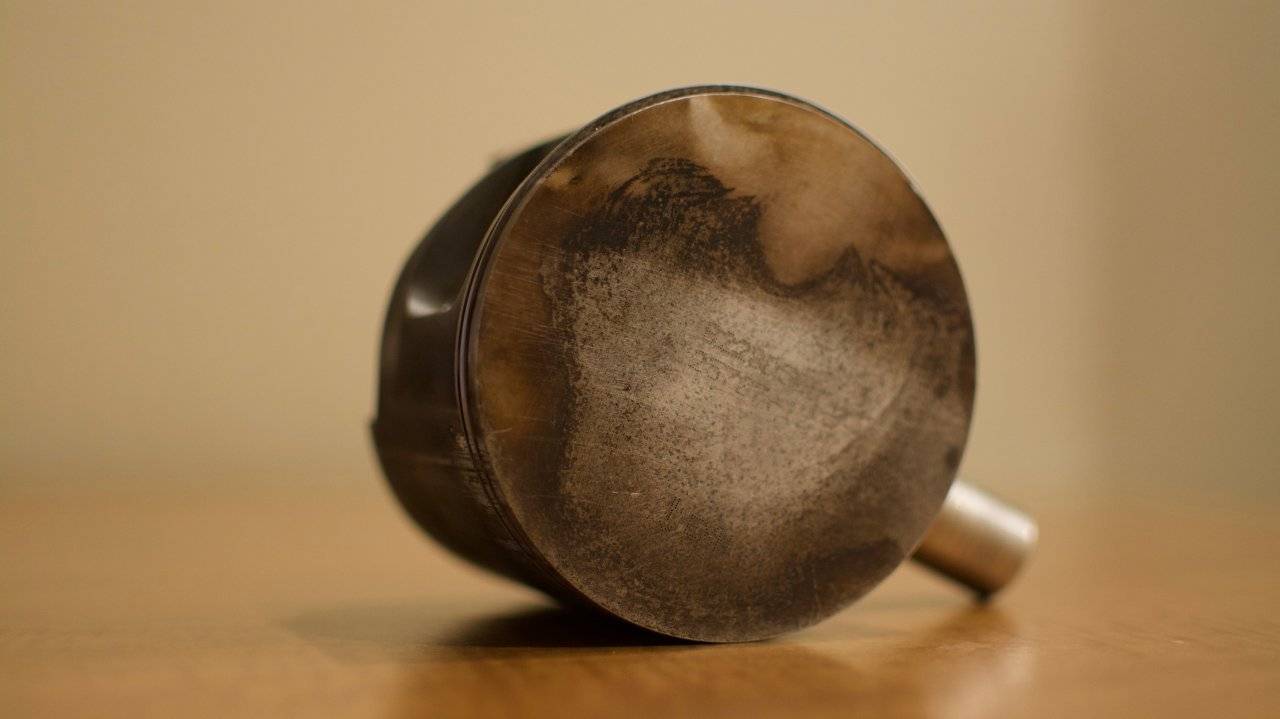

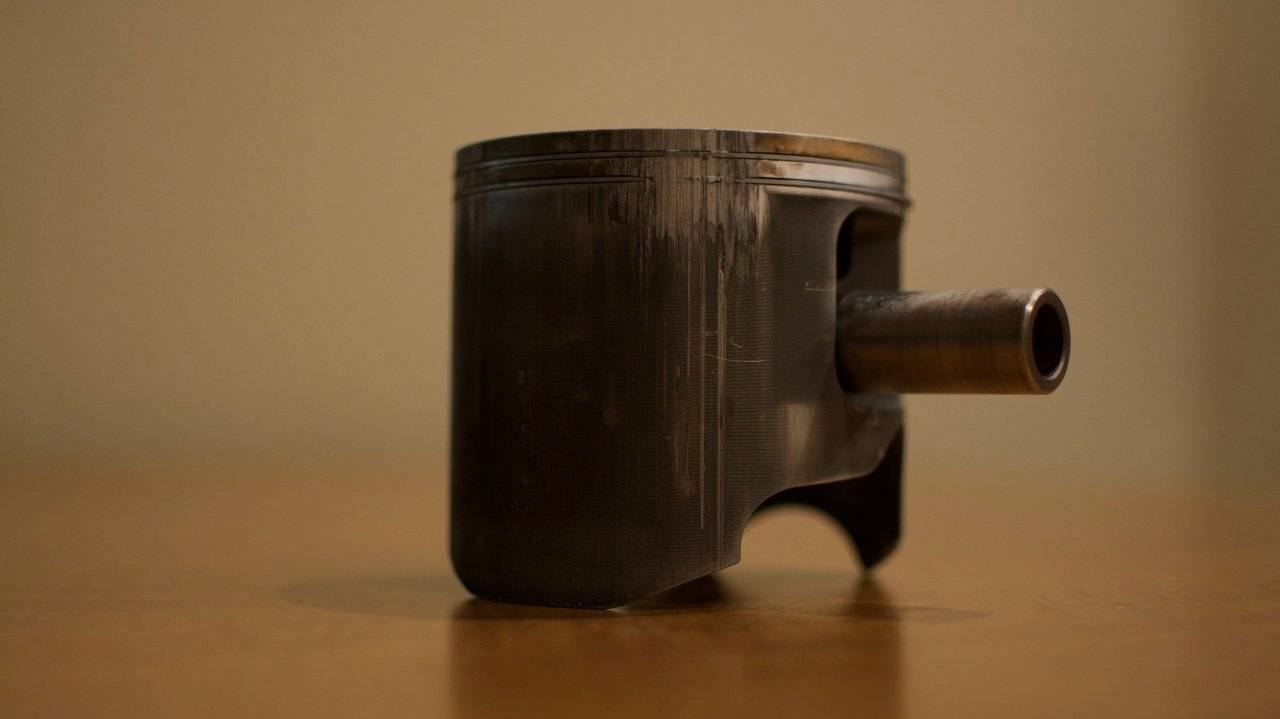

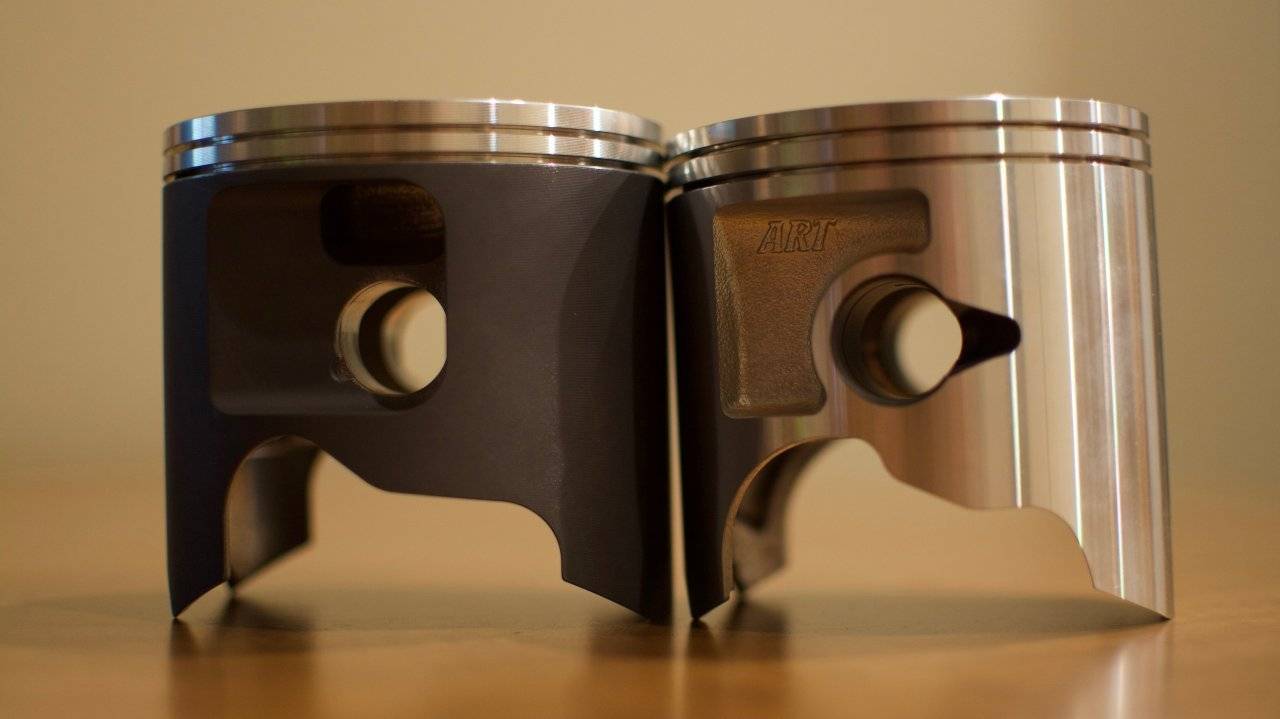

Turns out I cold seized the piston due to an improper break-in and a misunderstanding on how thermostats work! I had also had a constant coolant leak near the head. I tried heli-coiling the head studs due to torque issues Anyways, the big bore was raising hell. I sent the jug to Millennium Technologies to get re-nikasiled and ordered another piston from Wossner for the big bore.

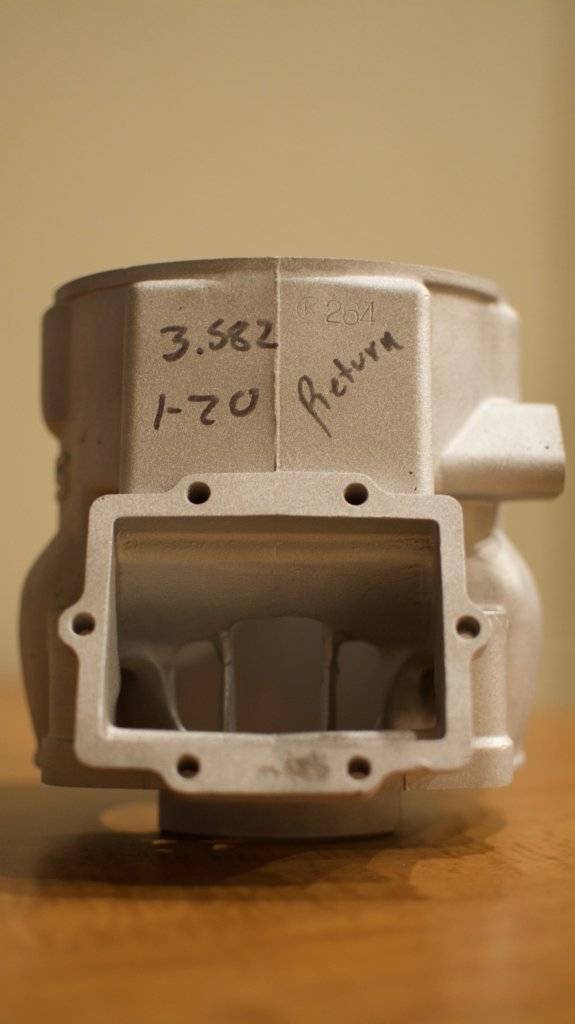

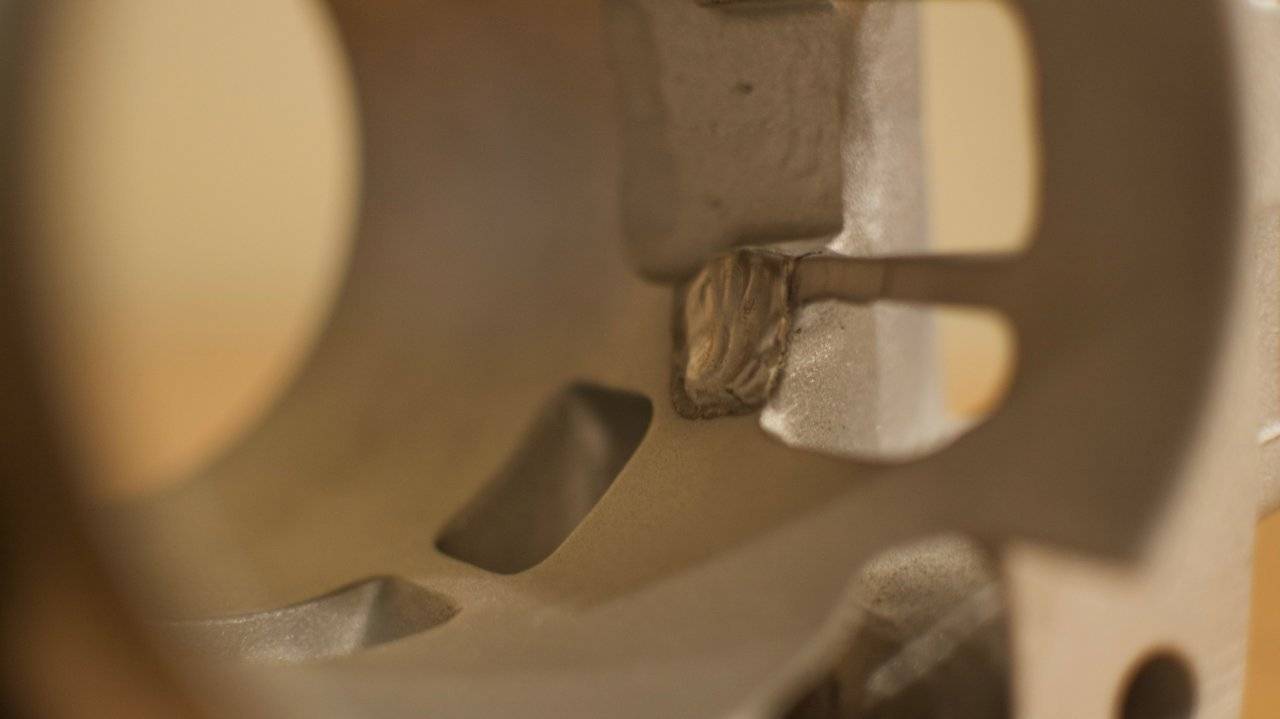

Turns out the Jug needed a lot more work then just re-nikasil. It needed welding and to make the piston I bought work it really needed to be resleeved. Once again I am no mechanic and I am still learning a lot of internals and how they operate! By this time I was low on funds and frustrated. So what do you do when that happens? Buy more parts.

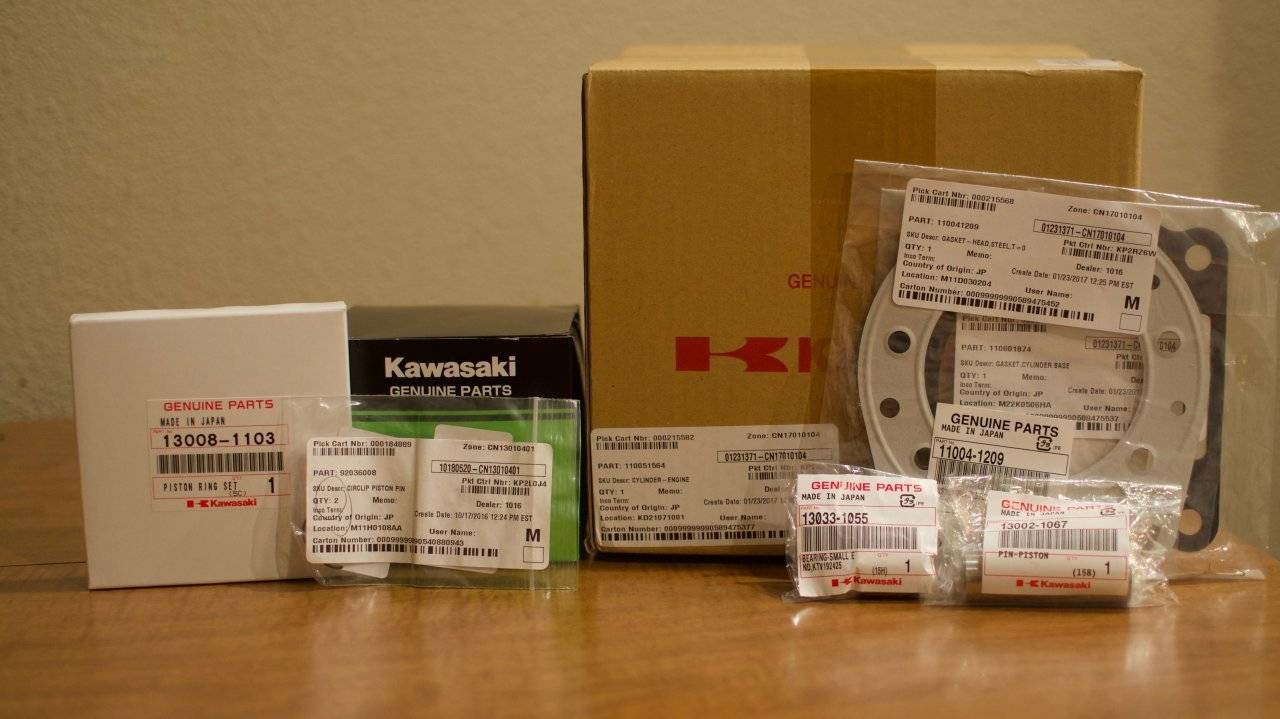

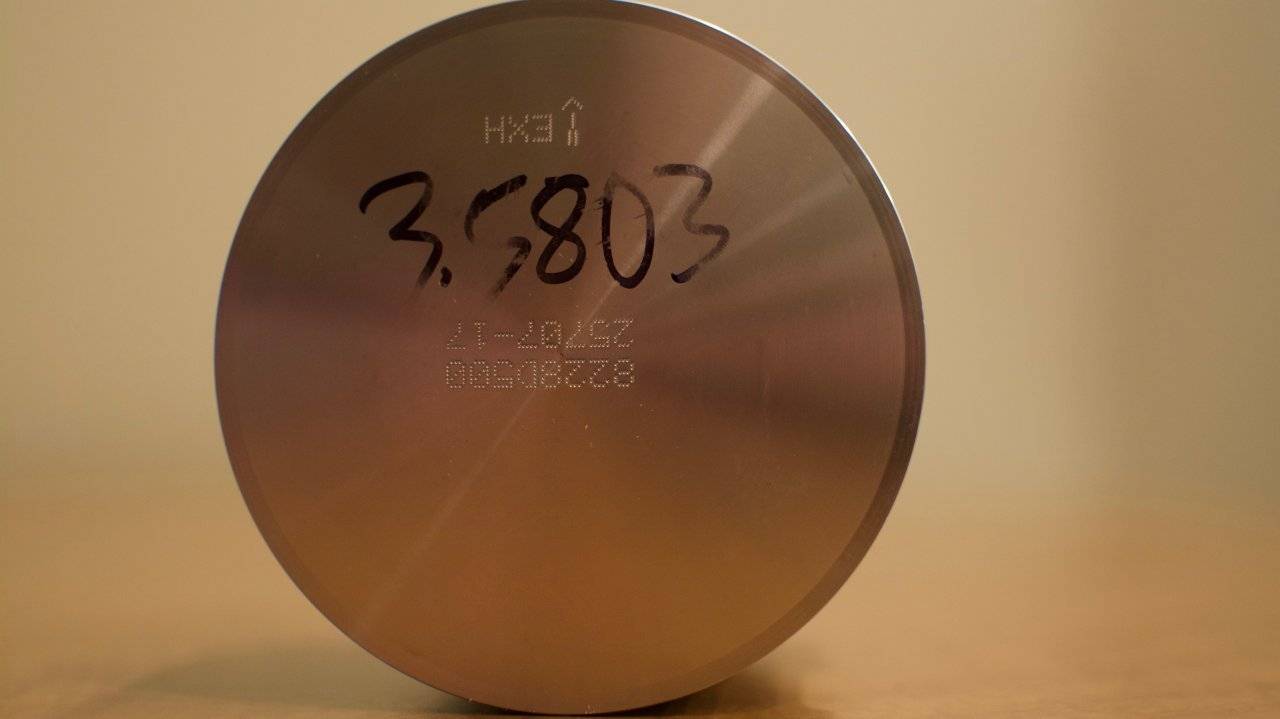

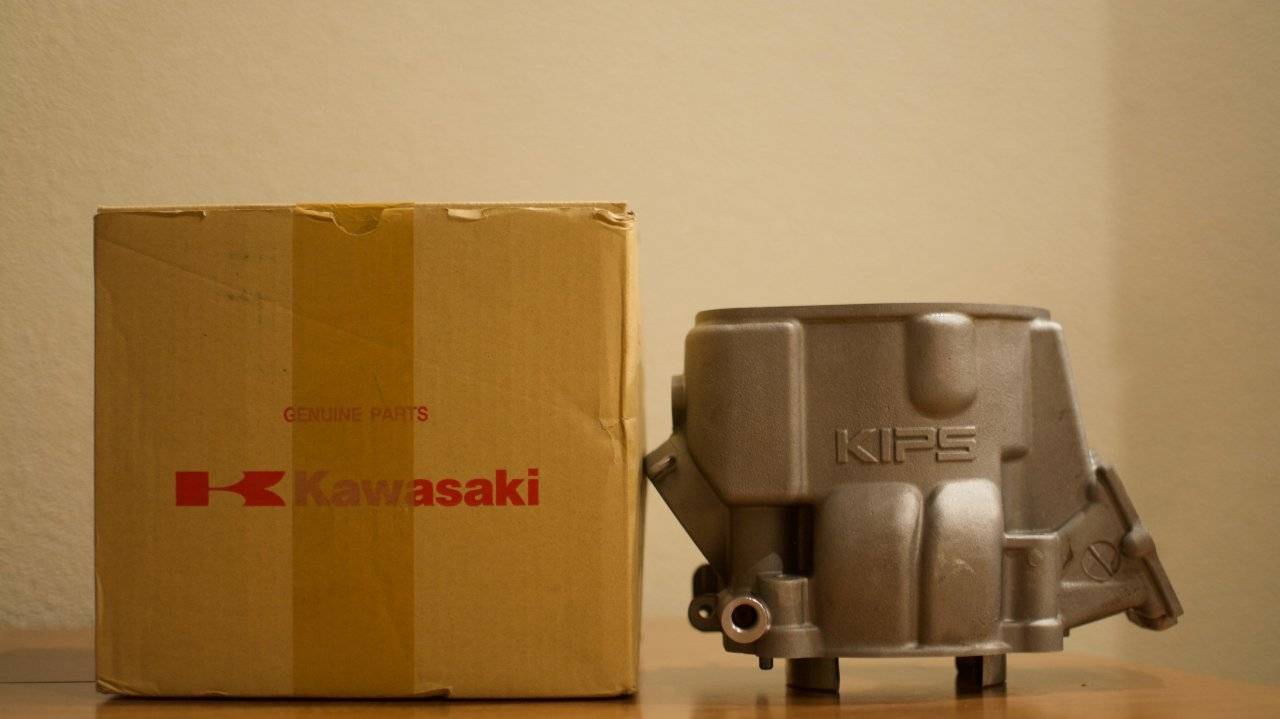

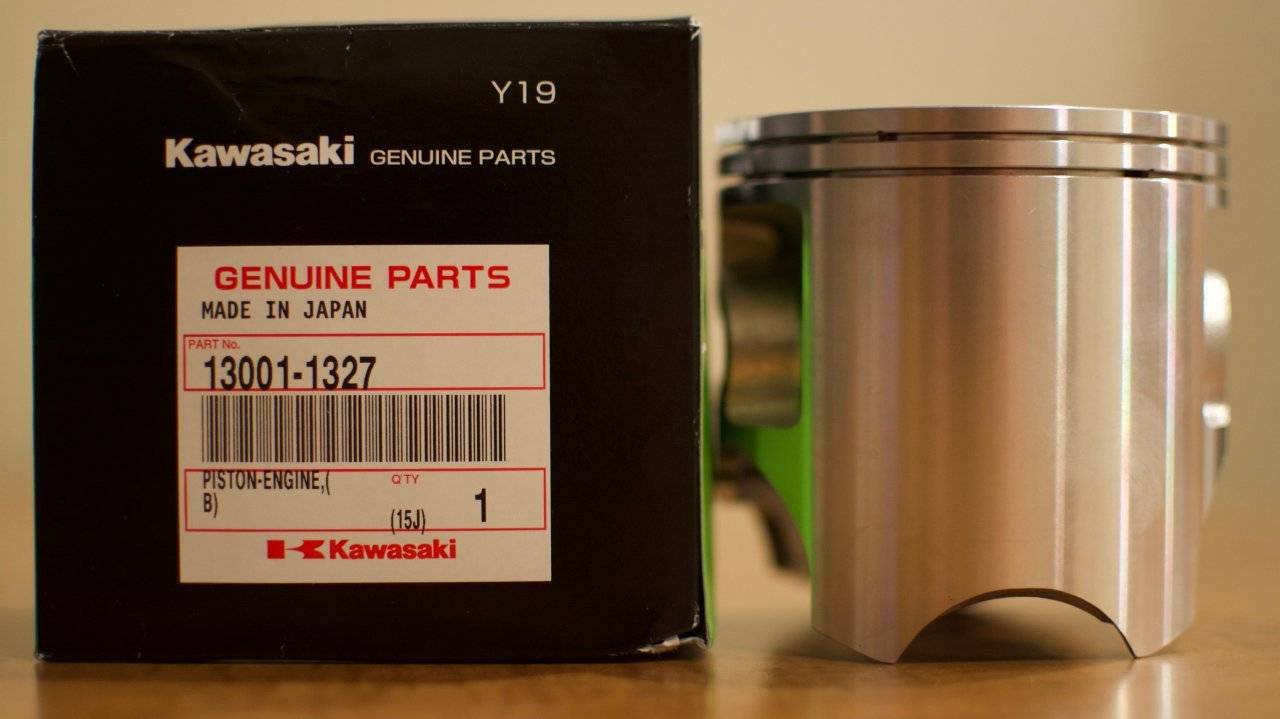

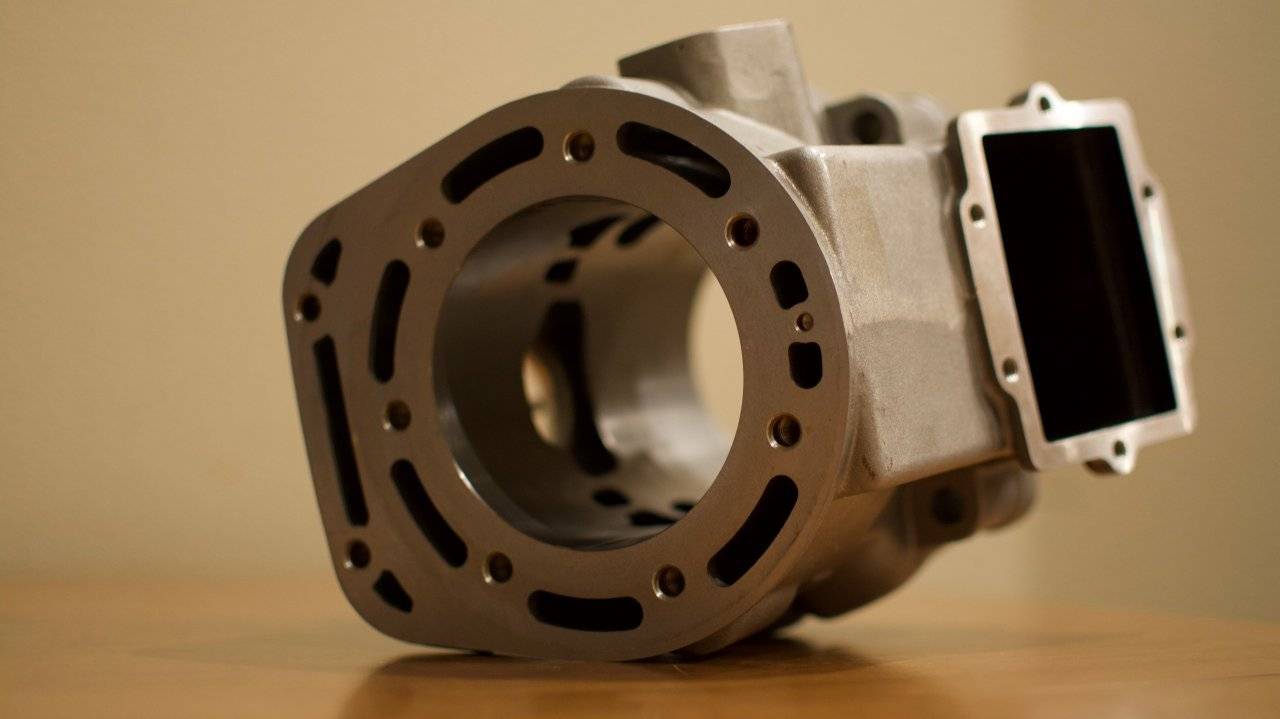

I went full OEM Kawasaki new top end. New Stock Jug, Piston, the works. I am now in the process of putting the motor back together. When I save some more pennies I am going to get the other jug resleeved for the big bore but for now I'm putting that project to the side.
Hopefully I will have the bike up and running by this coming friday. We can all hope right!
I have been pretty quiet for a while due to me making a mistake. We all make them right! This is my first build and I knew it was bound to happen. We have been having one hell of a snow year here in Jackson and luckily I have been able to ride all the 2017 sleds this year while I saved my pennies to fix my KX!
Turns out I cold seized the piston due to an improper break-in and a misunderstanding on how thermostats work! I had also had a constant coolant leak near the head. I tried heli-coiling the head studs due to torque issues Anyways, the big bore was raising hell. I sent the jug to Millennium Technologies to get re-nikasiled and ordered another piston from Wossner for the big bore.

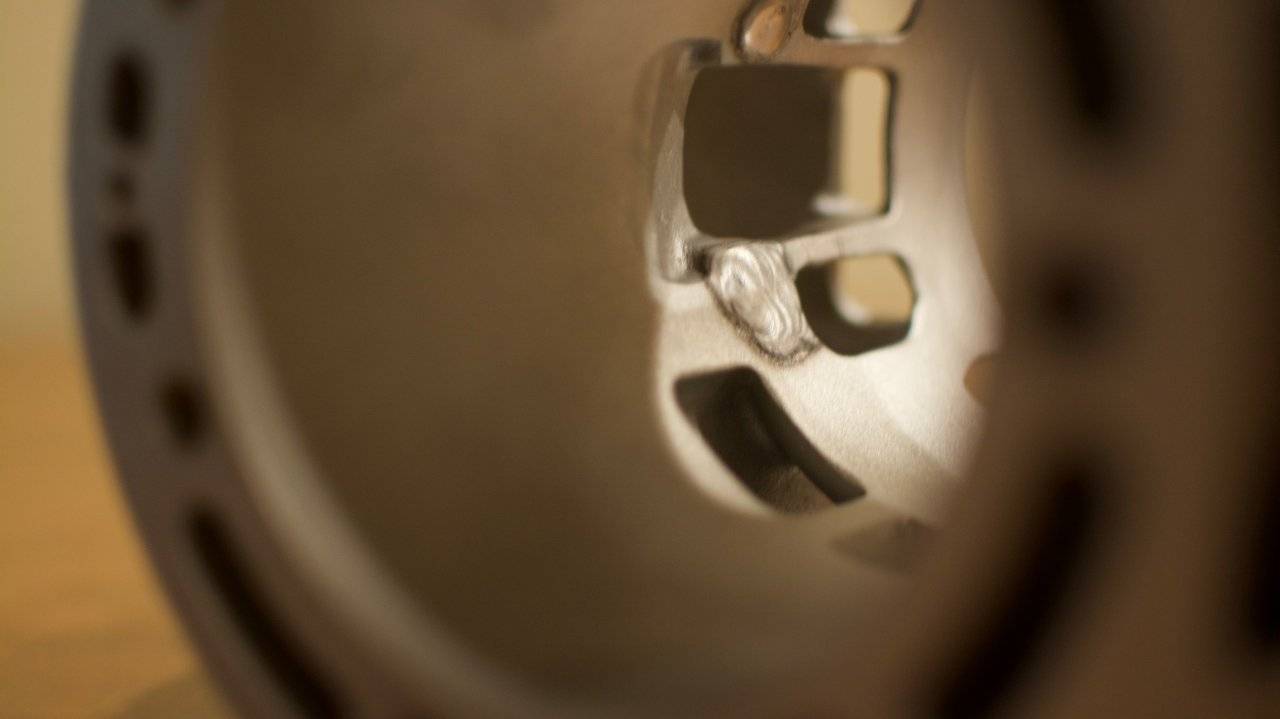

Turns out the Jug needed a lot more work then just re-nikasil. It needed welding and to make the piston I bought work it really needed to be resleeved. Once again I am no mechanic and I am still learning a lot of internals and how they operate! By this time I was low on funds and frustrated. So what do you do when that happens? Buy more parts.
I went full OEM Kawasaki new top end. New Stock Jug, Piston, the works. I am now in the process of putting the motor back together. When I save some more pennies I am going to get the other jug resleeved for the big bore but for now I'm putting that project to the side.
Hopefully I will have the bike up and running by this coming friday. We can all hope right!
Last edited:
Cool build, and awesome pics. What size of pelican case is that on the tunnel?
Make sure after you bolt the jug on you check how high the piston comes up. They seam to all b different might be detonation not cold seize. I'd bet a $1000 it wasn't from cold seize. Look to see if the bottom of the piston has a black spot under the wrist pin
really a sweet build... I wish the manufacturers had some modern 2 stroke engines applicable for snowbike use.... like 90 degree two stroke twin 500cc...That would be a screamer!
Pelican

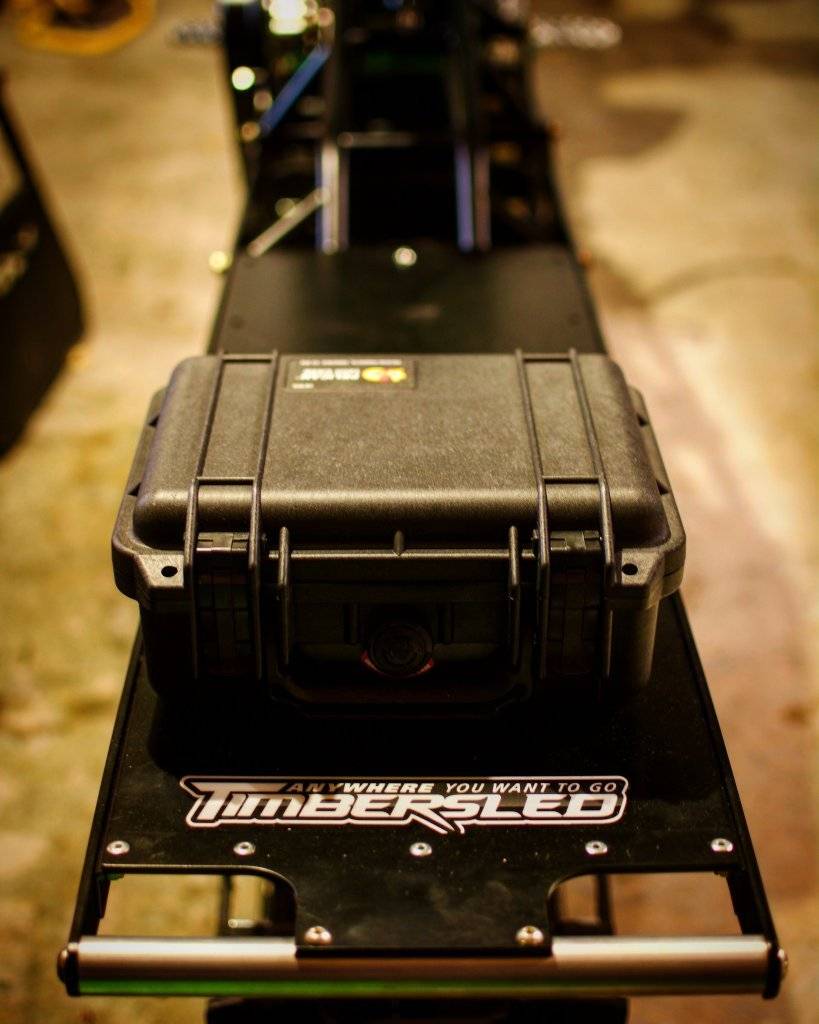

Pelican case is the 1150 Camera Case with Foam. Its smaller in size for some spare parts and tools. The SX tunnel is skinnier than the LT (10 vs 12) so it does not have the same amount of room!
Pelican case is the 1150 Camera Case with Foam. Its smaller in size for some spare parts and tools. The SX tunnel is skinnier than the LT (10 vs 12) so it does not have the same amount of room!
