Install and Review: Superclamp Superglides II Pro

[christopher]

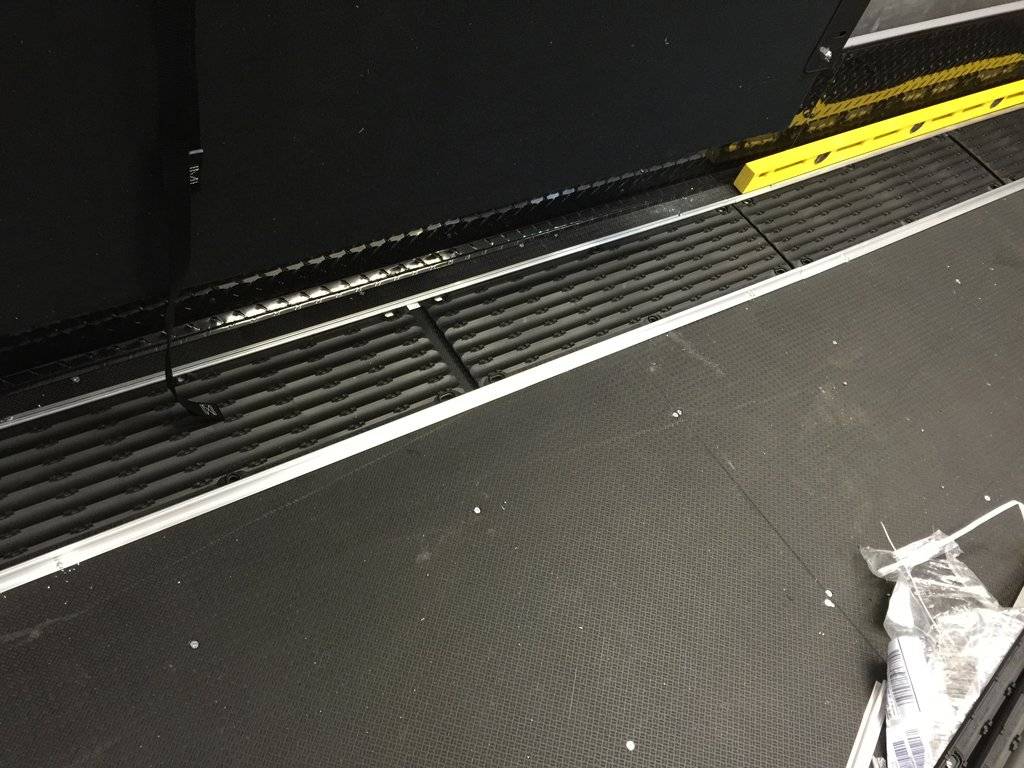

then we began laying down the sections where we wanted them to live and bolting them into place.

Both the Edge Trim and the SuperGlide itself are HIGHLY FLEXABLE!
This became very important as we had to bolt it down crossing over the transition angle from the rear ramp area into the flat center section of the trailer. Might not be super visible in this photo, but you can see all of the extra screws we put in place to make sure the "Bent" section of both the Trim and the SuperGlide stayed put over the "hump" in the trailer.



[christopher]

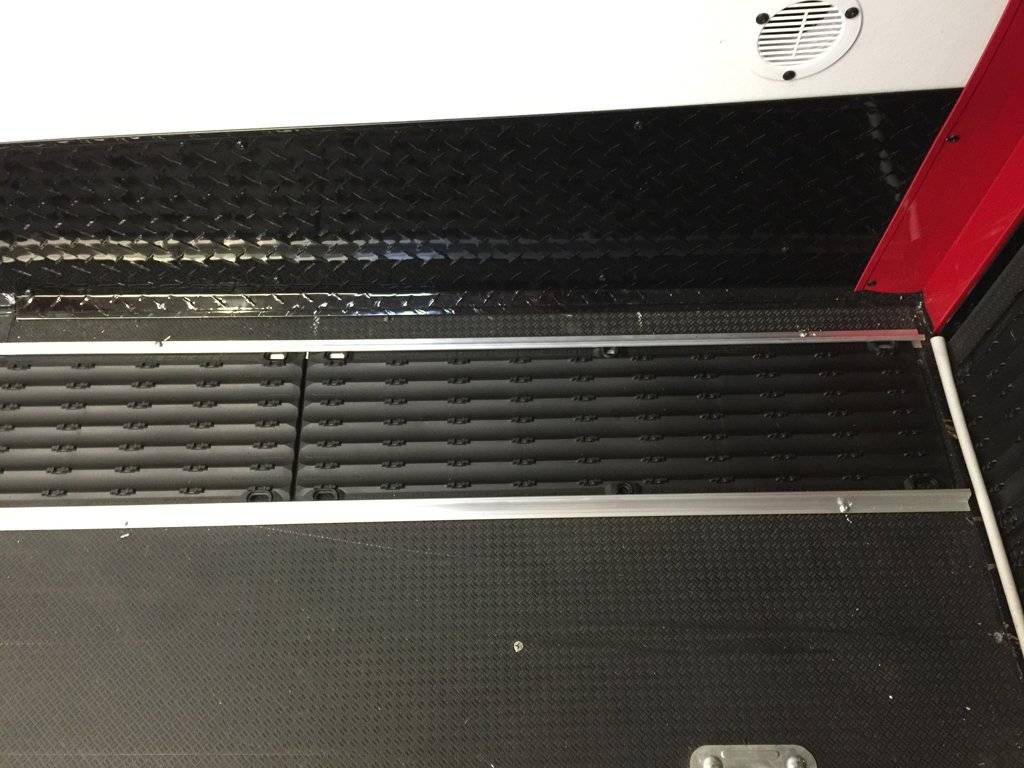

Continuing along the length of the trailer when we came to the wheel well we trimed both the Edge Trim and SuperGlide to the proper length and droped in the next section. Both the Edge Trim and the SuperGlides were VERY EASY to trim using a Jigsaw.

It should be noted that the Mirage Trailer comes PRE-EQUIPPED with a set of glides that cover the wheel wells.



[christopher]

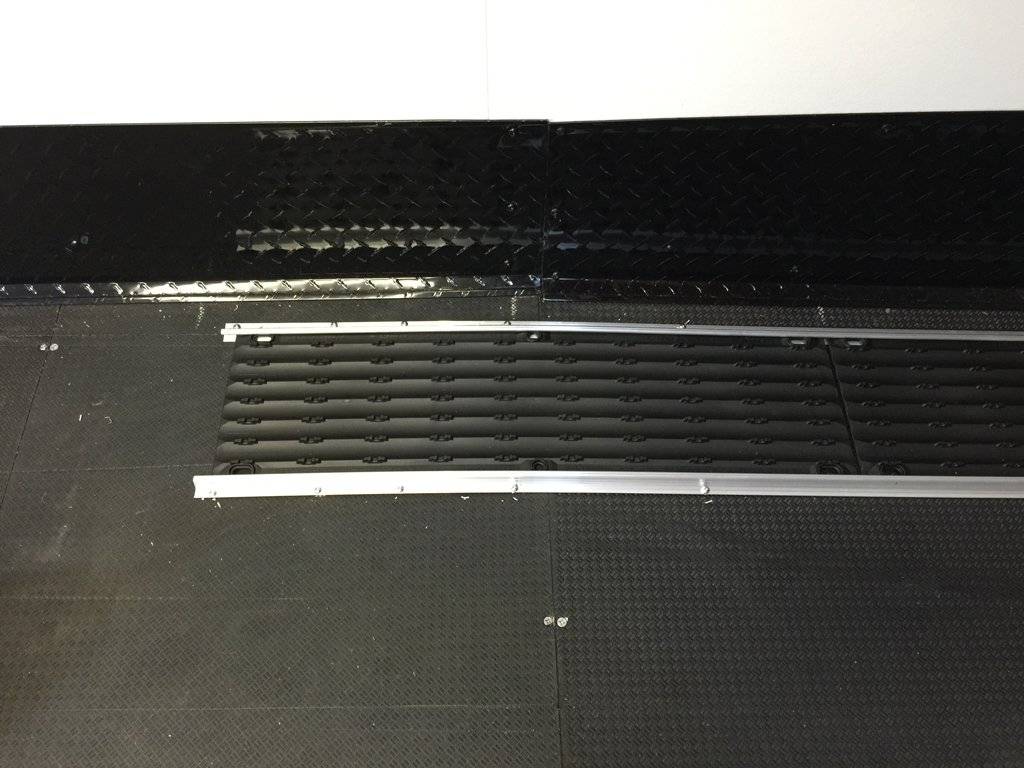

Fastening the Edge Trim to the floor couldn't be easier!
Superclamp supplies a TON of self tapping screws!



[christopher]

After measuring our 4 sleds for width between the skags on each of the sleds and from the outer edge of the skies, we determined the proper offset from the trailer wall and were able to use a simple construction ruler to keep our side spacing correct. Simple and fast!

Could just as easily laid down a chalk like or used a grease pencil.

Trailer decorations!



[christopher]

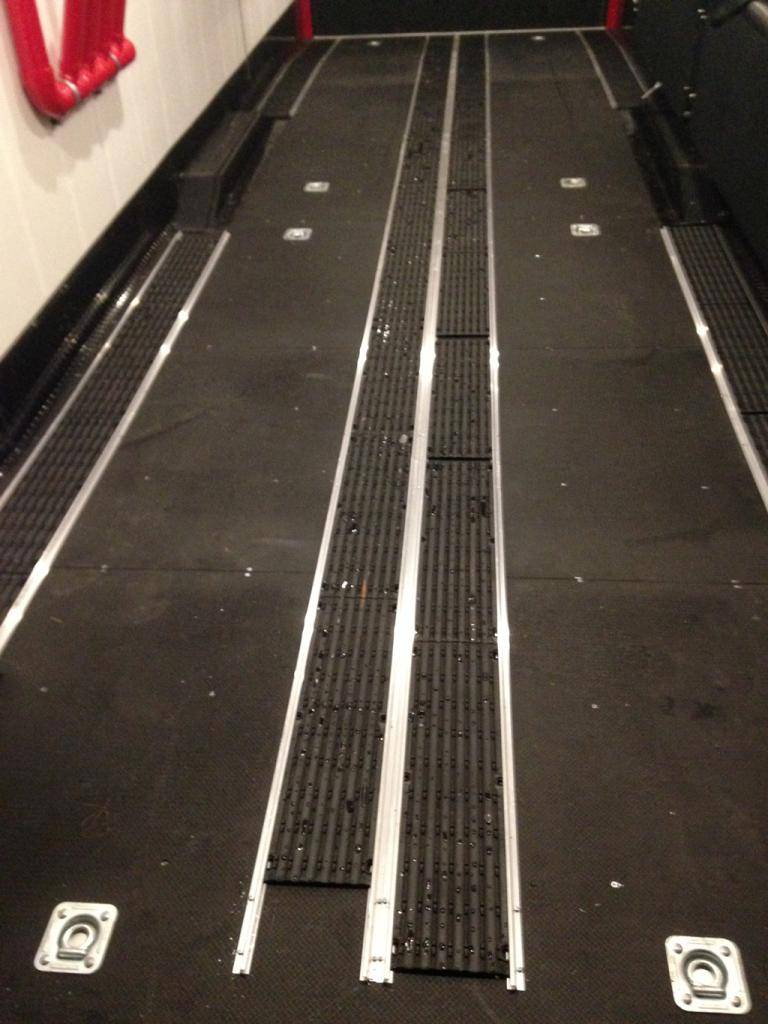

This is as far as we got on phase 2.
Track is laid from the rear ramp forward to the edge of the nosecone.
Next step will be to lay down the 45 degree angle "Turn" from straight to the exit ramp in the front.

Hope to get that done this week.

Now a couple NOTES.

NOTE!
All of the SuperGlides are FREE FLOATING inside of the Edge Trim.
That means I can push at one end of the trailer and 28ft away ALL of the glides move!

The glides MUST be bolted down in place at both ends to secure them from moving!

Silly me.
We didn't do that right away not knowing just how easily the glides could move. Drove a sled into the trailer, caught the glide and SHOT it out the other end!!

Live and Learn.
But the nice thing is that that allows for the natural expansion and contraction of the plastic guides from changes in temp.



[christopher]

This picture shows just how much free play the glides have when they are unsecured in the Edge Trim.
Once the screws go down at the front and back of the Edge Trim they will be more or less locked into position for the duration.
We have not done that YET as we are not sure where the final trim line will be at the front to match up with the 45 Degree left turn to get to the exit ramp.



[JMCX]

Place each section of glide where you want it, with the recommended spacing at the ends, and then run a screw at a 45deg angle through the aluminum track into the glide near the centre. This will lock it in position.



[dclancey]

Supperglides II install and Review

Excellent post, why don't more manufacturers post video or picture installs of their products like this. I just went through this with my new ATC trailer and with the help of posts like this, I was able to install my slides in my trailer without screwing them up too badly. I wish I would have used a different model with the extra traction on my trailer, (used a different brand). Thanks for all of your great information.



[christopher]

Not a clue.
I still need to get the front ramp done.
Have part of the 45 degree left turn in place now



[christopher]

The problem with projects in the middle of riding season is that they can take time away from riding!

Grrr



[Shoein]

Great write up on the install. How are the glides on the ramp holding up with the tracks running on them? Are your tracks studded? Want to put the glides on a 6 foot wide trailer but was worried the studs would tear them apart.



[christopher]

Great write up on the install. How are the glides on the ramp holding up with the tracks running on them? Are your tracks studded? Want to put the glides on a 6 foot wide trailer but was worried the studs would tear them apart.

They are LIKE NEW.
They hold up VERY VERY WELL.

My tracks are NOT studded though.



[Shoein]

They are LIKE NEW.
They hold up VERY VERY WELL.

My tracks are NOT studded though.

Thanks, gonna give it a try.



[christopher]

Thanks, gonna give it a try.

In all honesty.
I absolutely LOVE MINE.



[christopher]

Bump



[nails1973]

how did you do the 45?

You never finished your post. How does the 45 degree angle look? how did you do it? I have very similar trailer



[christopher]

You never finished your post. How does the 45 degree angle look? how did you do it? I have very similar trailer

if I recall from 5 years ago the season caught up with us and we never laid the last piece of track to make the 45 degree turn.


While I think it would have looked more finished, functionally it just didn't make a huge difference.


It was time to go sledding!



[Timelessc]

Hi Christopher
I just wished to say thank you for youre thread regarding the SuperGlide installations. Yes, you're post goes back a few years but the information provided is just as valuable today as it was back when you posted this. I recently purchased some of the SuperGlide WIDE and SuperGlide PRO II to install in a trailer very similar to what you have so you're post is much appreciated. I recently joined SnoWest so this is my first post. Again, thank you!

Daniel



[christopher]

Hi Christopher
I just wished to say thank you for youre thread regarding the SuperGlide installations. Yes, you're post goes back a few years but the information provided is just as valuable today as it was back when you posted this. I recently purchased some of the SuperGlide WIDE and SuperGlide PRO II to install in a trailer very similar to what you have so you're post is much appreciated. I recently joined SnoWest so this is my first post. Again, thank you!

Daniel

Its one of the things that really makes this place VALUABLE.
The information isn't lost over time.



[IDspud]

Have You ever had a sled fall off your glides Christopher?
